概觀

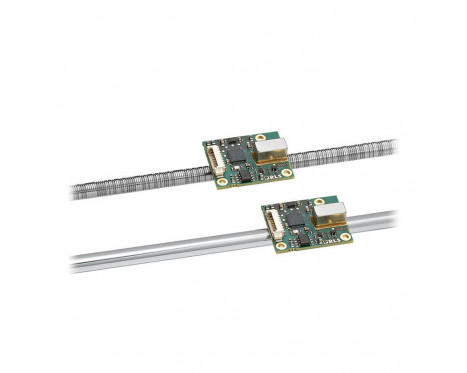

LinACE™ flat-board is a board-level absolute linear magnetic encoder system designed for motion control applications as a position and velocity control loop element.
The readhead length only 30 mm and low weight of the encoder system make it suitable for applications with limited space.
LinACE™ flat-board provides accurate measurements with excellent resolution and repeatability. The encoders are available in asynchronous serial over RS422, SSI and BiSS C output versions and offer a range of selectable resolutions from 10 μm to 0.5 μm with speeds up to 5 m/s. The position of the encoder is maintained even if the shaft rotates during forward and backward movement.
特徵
- Small footprint 30 × 25 × 8.5 mm
- 解析度最高可達 0.5 μm
- 測量長度最高可達 300 mm
- 啟動電源時的絕對位置
優點
- 內建自我監控功能
- Excellent resistance to stray magnetic fields
- 在全溫度範圍保持穩定
- 適合高動態控制迴路
- 非接觸式技術可提供高可靠性
