概觀

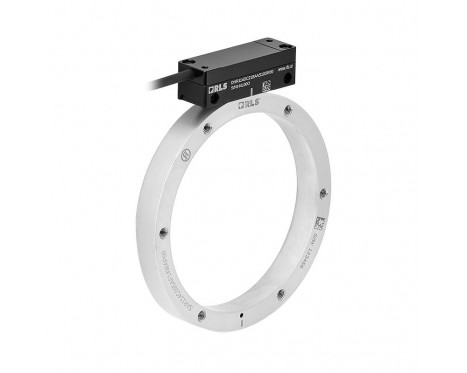

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular velocity. The robust design protects the readhead and magnetic ring from liquid ingress and high temperatures, so they remain undamaged even in extremely contaminated and hot environments.

優點

  • True absolute system
  • High accuracy and resolution
  • Suitable for highly dynamic control loops
  • Robust design and great EMC compatibility
  • Rotational speeds up to 30,000 rpm
  • SSI and BiSS communication protocols
  • Compatible with solid rings
  • Wide installation tolerances
  • IP67 protection class
配置與購買 Configure 規格資料表

產品資料

系統

編碼器類型
Rotary absolute
讀取類型
徑向
輸出
BiSS-C, SSI
最大解析度
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM

電氣

供應電壓
5 V to 30 V

環境

IP 防護等級
IP67
工作及存放條件
-20 °C to +85 °C
規格資料表提供詳細資訊

Speed calculator

Calculate maximum speed and determine product parameters based on your application.
