FlexIN™
Magnetic Scale System for Large Diameters

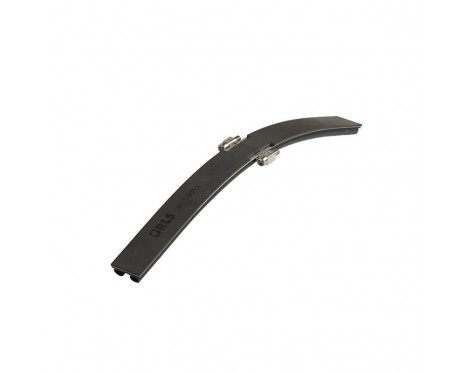

FlexIN is a rubber-supported system with built-in tensioning mechanism compatible with a magnetised scale MS and an LM10 or LM15 incremental encoder. It is designed for installation onto large shafts as an element of the position and speed control loop. The compact readhead has wide installation tolerances and offers industry standard output types and a reference pulse for relative position. The non-contact measuring principle and IP68 protection ensure high reliability in demanding applications.
Features & Benefits
- Rubber spring profile supported scale with built-in tensioning mechanism
- For external diameter installation
- For diameters from 350 mm to 3500 mm
- Full circle measurement
- Maximum rotational speed 325 rpm at 1 m diameter
- Large diameter tolerance ±0.2 mm
- Temperature range from –40 °C to +85 °C
- Substrate thermal expansion compensation
Product data
System
- Encoder type
- Incremental
- Resolution
- Up to 13 bits per pole
Electrical
- Reference signal
- Single, periodic
Environmental
- Temperature
- Operating: -40 °C to +85 °C
Downloads
- pdf Data sheet: FlexIN™ Magnetic Scale System for Large Diameters (FID01)
- pdf Application note: Improving the accuracy of the FlexIN system with the DSi interface (APP08)
- zip 3D model: FlexIN™ for a 1-meter shaft diameter
- zip 3D model: FlexIN™ joint with straight scale
- zip 3D model: ACC089 Rolling Tool
- pdf Declaration of conformity EU MS AS WL HM MR FI
- pdf Flyer: FlexIN™ Magnetic Scale System for Large Diameters (WU3F01)
