Overview
Not recommended for new design.

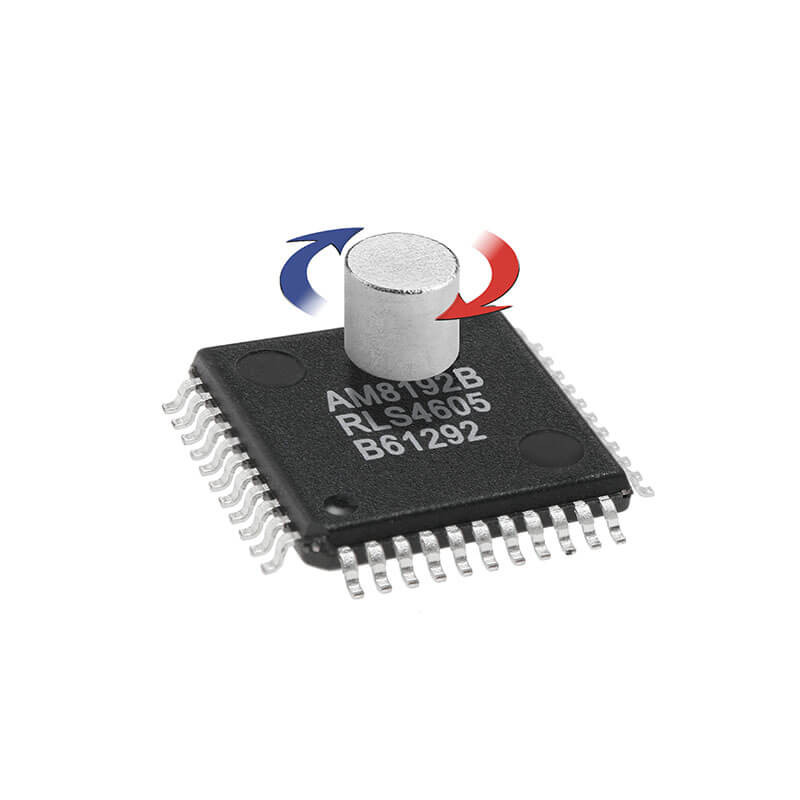

The cylindrically shaped high quality magnet is diametrically polarized and factory selected to ensure best accuracy performance.
Sine and cosine voltage outputs from the Hall sensor array vary with magnet position. Analogue signals are then converted to position data using a configurableinterpolator (up to 13 bit).
Features
- Contactless angular position encoding over 360°
- Up to 13 bit absolute encoder
- Range of binary and decimal resolutions
- 5 V power supply
- SMD package LQFP44
Benefits
- Ideal for harsh environments due to magnetic sensing
- Complete system-on-chip solution
- RoHS compliant
Request for quote
Data sheet
Product data
System
Encoder type
Absolute, Incremental
Reading type
Rotary
Outputs
Incremental, Serial SSI
Programmable resolution
Up to 13 bit
Electrical
Supply voltage
5 V
