Overview
SpinCo™ is an incremental magnetic encoder system designed for use as primary position and speed feedback sensor for machine tool spindles.

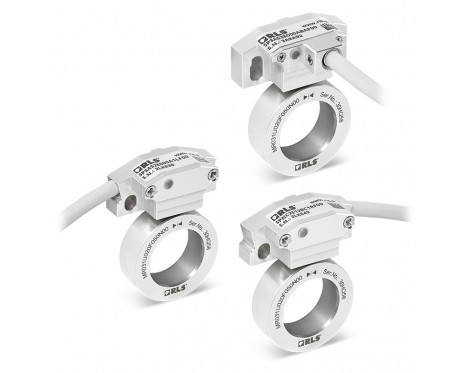

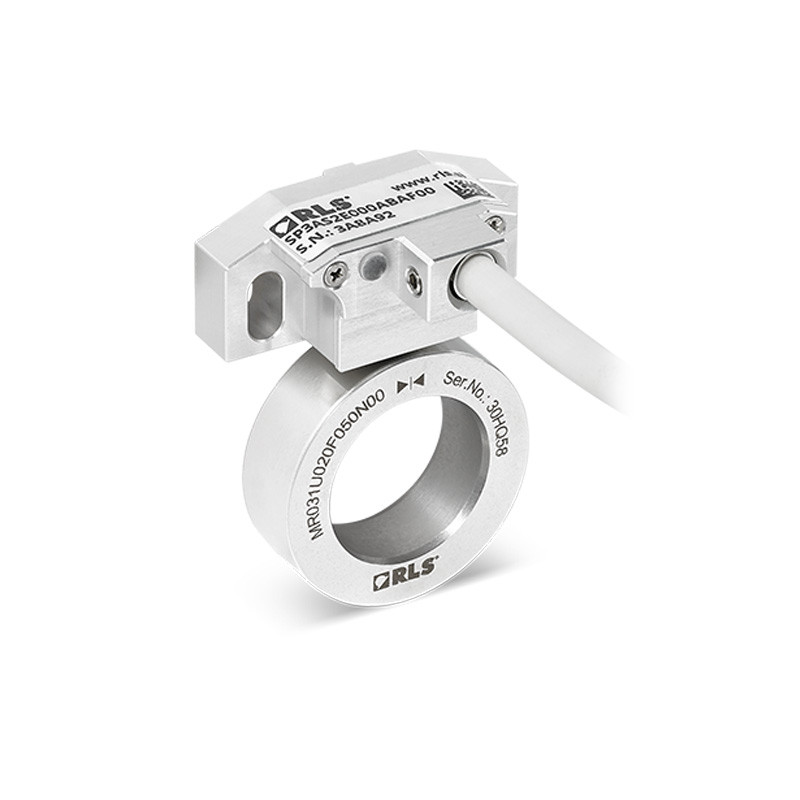

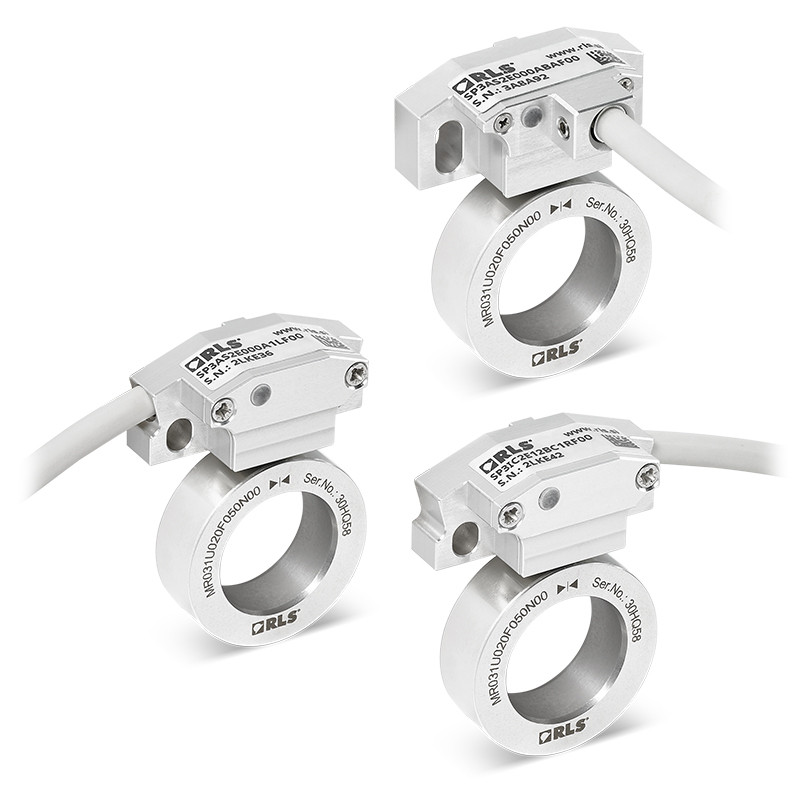

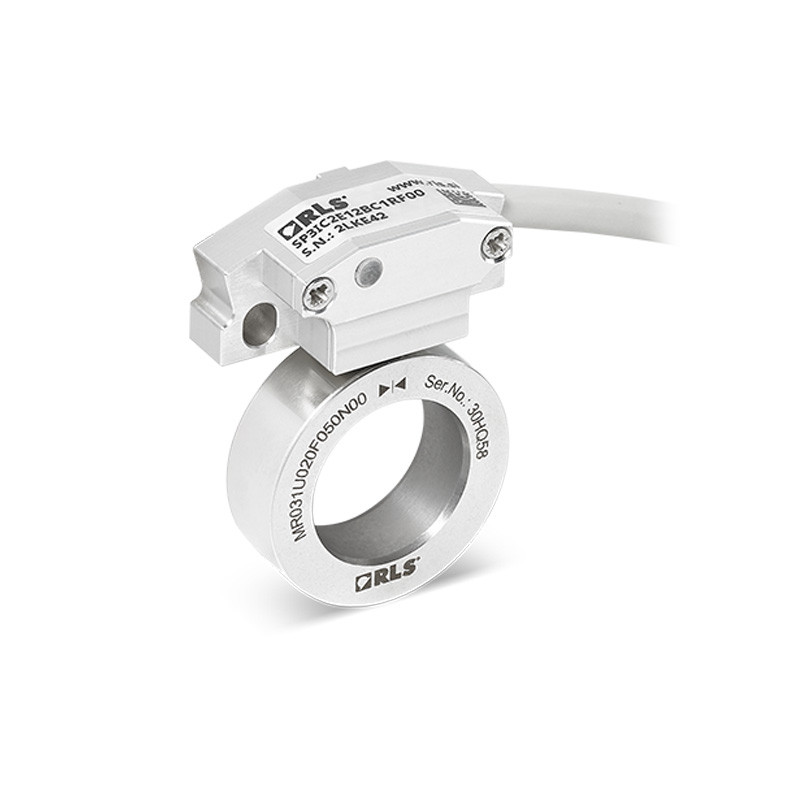

It consists of two key elements, a readhead and a magnetic ring with welded cover foil.
Features
- Different ring sizes available
- Speeds up to 55,000 rpm
- From 50 to 556 sin/cos periods per revolution
- ABZ digital incremental outputs with up to 4,096 steps
per sin/cos period - Analogue output signals (1 Vpp)
Benefits
- Robust design
- High operating speed
- Signal stability
- IP67 protection
- Wide installation tolerances
- Small readhead size
- High accuracy
Configure and Buy
Configure
Data sheet
Product data
System
Encoder type
Incremental
Pole length
1 mm, 2 mm
Electrical
Supply voltage
5 V ±10 % (absolute maximum 6 V)
Current consumption
< 50 mA
Mechanical
Cable
TPE AWG 26, shielded, Ø4.8 ±0.15 mm
Mass
Readhead: 120 g (1 m cable, no connector)
Environmental
IP protection
IP67
Operating and storage temperature
-40 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
