Overview

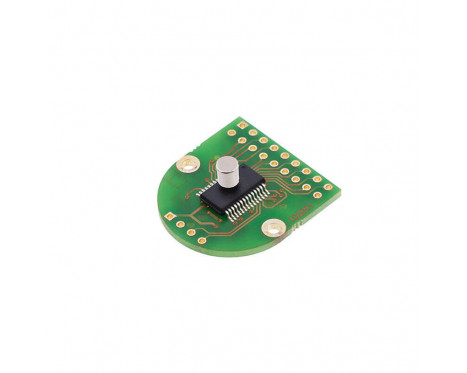

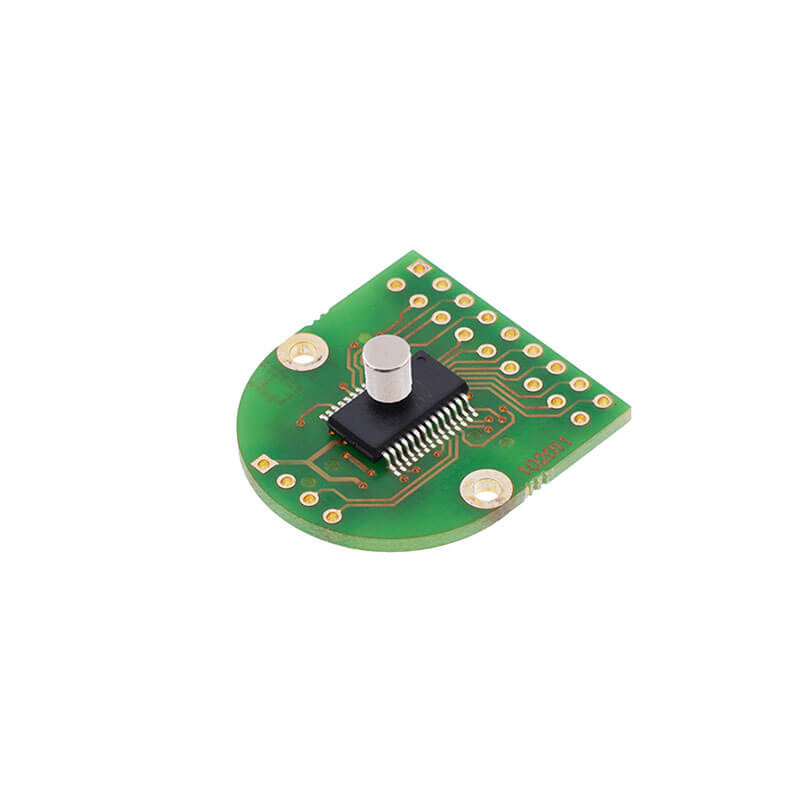

AM4096 on a PCB with all necessary components and a magnet, delivered in an antistatic box.
RMK4 has all outputs available, by default it is configured for 5 V supply voltage and with 12 bit resolution.
RMK4 is evaluation board, not suitable for mass production.
RMK4KIT is a custom made demo kit consisting of RMH06 magnetic actuator and RMK4 PCB on acrylic base with prefabricated hole to allow the magnet to be positioned inside tolerance according to the AM4096 datasheet.
