RMB14 angular magnetic encoder module

RMB14 angular magnetic encoder module

More Views

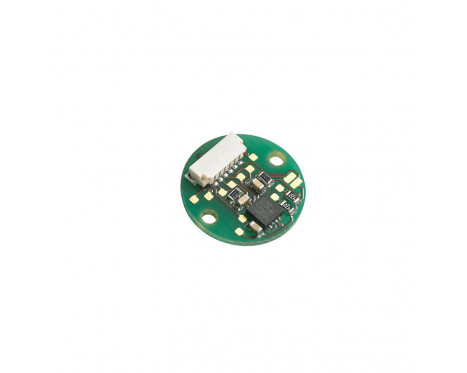

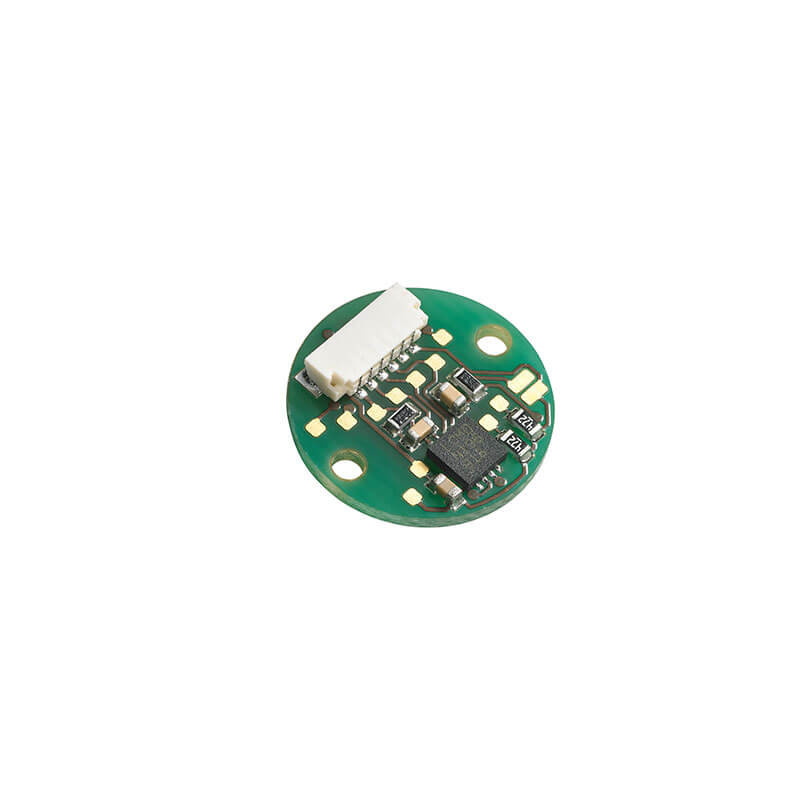

The RMB14 is compact, absolute, high-speed encoder module. With a PCB diameter of only 14 mm the module fits into miniature designs.


The encoder module consists of a magnetic actuator and a separate sensor board. Rotation of the magnetic actuator is read by a custom encoder chip mounted on the sensor board, and processed to give the required output format. Output signals are provided in industry standard absolute and incremental formats.


The RMB14 can be used in a wide range of applications including robotic grippers, marine, medical, print, converting, industrial automation, motor control and instrumentation.

RMB14IC – Incremental output, RS422
Output signals A+, B+, Z+, A–, B– Z– (RS422)
Accuracy* ±0.5° *
Hysteresis 0.18°
Resolutions 32, 64, 128, 256, 512, 1024, 2048, 4096 cpr
Maximum speed 30,000 rpm
RMB14SC – Absolute binary synchro-serial (SSI), RS422
Data output Serial data (RS422)
Data input Clock (RS422)
Accuracy Typ. ±0.5° *
Hysteresis 0.18°
Resolutions 32, 64, 128, 256, 512, 1,024, 2,048, 4,096 cpr
Maximum speed 30,000 rpm



* Valid for Ø4 × 4 mm magnets only.

All output types
Power supply Vdd = 3.3 V or 5 V ±5%
Current consumption Max. 35 mA
RMB14IC – Incremental output, RS422
Temperature
Operating and storage
–40 °C to +85 °C (limited by connector)
RMB14SC – Absolute binary synchro-serial (SSI), RS422
Temperature
Operating and storage
–25 °C to +85 °C (limited by connector)

Features

  • 14 mm diameter circular module
  • 3.3 V and 5 V power supply
  • High speed operation up to 30,000 rpm
  • Absolute - up to 12 bit resolution (4,096 counts per revolution)
  • Industry standard absolute and incremental output formats
  • Accuracy up to ±0.5°
  • RoHS compliant (lead free)

Buy products by choosing the specificationsClick here to choose the specifications

Loading configurator...
Lead time up to: 10 working days
