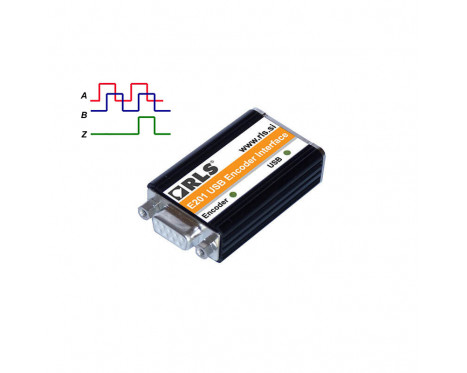

E201-9Q
USB Interface for Incremental Encoders
The E201-9Q counts edges from 5 V incremental encoders and allows the count value to be read by a PC using simple ASCII commands over the USB connection.
For use with:
- Artos (Only with PCB-A for DI and SI option)
- LM10/13/15
- RE22/36
- RLB
- RLM
- RM22/36
- RM44/58
- SpinCo
- HiLin
- FlexIN
Software notice:
USB drivers For Windows 10 or newer use Windows Update to install “inbox drivers”. More information is on this link. For Windows 8 or older, drivers will be installed together with the software.
For manual USB drivers setup please download the setup file.
Downloads
- pdfData sheet: E201 USB Encoder Interface (E201D01)
- pdfApplication note: E201-9Q Matlab Interface (E201D03)
- zip3D model: E201 USB Encoder Interface
- zipBiSS C data packet decoder and CRC calculator
- zipSoftware: USB drivers for the virtual COM port
- zipSoftware for E201-9Q and E201-9S
- zipSoftware for Matlab E201-9Q Interface
- pdfDeclaration of conformity EU E201
