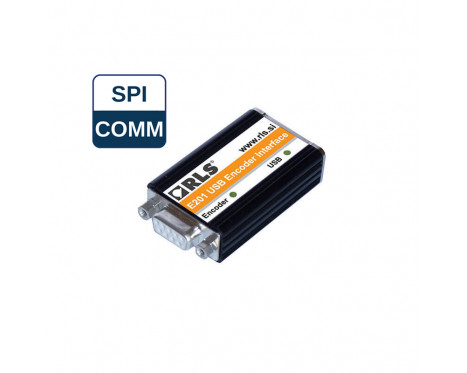

E201-9P
USB Interface for SPI and PWM Encoders
The E201-9P interrogates a SPI or PWM encoder and allows the data to be read by a PC using simple ASCII commands over the USB connection. Also supports complete functionality of the EncoLink protocol over SPI interface.
For use with:
- AksIM-2 & AksIM-4
- LA11
- Orbis
Software notice:
For manual USB drivers setup please download the setup file.
Downloads
- pdf Data sheet: E201 USB Encoder Interface (E201D01)
- zip 3D model: E201 USB Encoder Interface
- zip BiSS C data packet decoder and CRC calculator
- exe EncoSight software for E201-9P and Orbis SPI encoders
- exe EncoSight software for E201-9P and LA11 encoders
- zip Software: USB drivers for the virtual COM port
- zip EncoSight software for E201-9P and AksIM SPI encoders
- pdf Declaration of conformity EU E201
