Cable assembly Molex 11 pin to flying leads (1 m) - ACC012

Cable assembly Molex 11 pin to flying leads (1 m) - ACC012

More Views

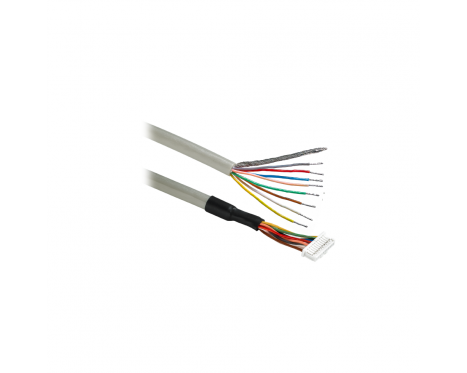

Cable assembly with 11 pin Molex connector (PN: 501330-1100), 8 core 1 m long.

Suitable to connect AksIM-2 and Orbis encoders. For details and pinout see Orbis datasheet.



Crimp pins Molex 501334-0000
Connector 11pin  Molex 501330-1100
Cable LI12YC12Y 4X2X0, 14



Pin Color
1 Brown
2 -
3 White
4 -
5 Pink
6 Grey
7 Red
8 Blue
9 Shield
10 Green
11 Yellow
Cable specifications LI12YC12Y
Configuration 4 × 2 × 0.14 mm2
Sheath color Grey (RAL7032)
Rated voltage 250 V
Temperature range Stationary –40 °C to +130 °C
Moving –30 °C to +125 °C
Environmental conformity RoHS compliant
73/23/EEC-Guideline CE compliant
Halogen free
Chemical resistance Largely resistant to acids, bases and usual oils.
Free from lacquer damaging substances and silicone.

Features

Buy products by choosing the specificationsClick here to choose the specifications

Lead time up to: 10 working days
