Übersicht
Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle/position and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular/linear velocity. The robust design protects the readhead from liquid ingress and high temperatures, so it remains undamaged even in extremely contaminated and hot environments.
Vorteile
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- Robust design and great EMC compatibility
- SSI and BiSS communication protocols

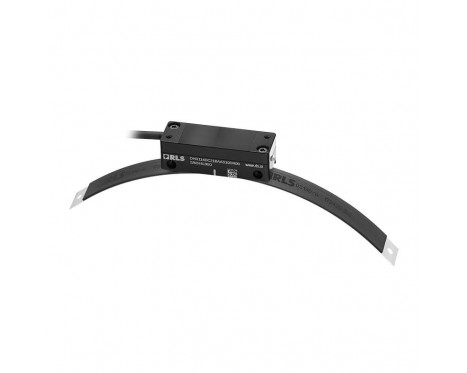

- Compatible with linear and partial-arc scales
- Wide installation tolerances
- IP67 protection class
Konfigurieren und kaufen
Konfigurieren
Datenblatt
Produktdaten
System
Gebertyp
Linear absolut
Ausgangssignale
BiSS-C, SSI
Auflösung
Up to 0.122 μm
Compatibility
DS19 absolute magnetic scale
Elektrisch
Versorgungsspannung
5 V to 30 V
Umwelt
IP-Schutz
IP67
Betriebs- und Lagertemperatur
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
