概觀
Orbis™ is a non-contact through-hole rotary encoder designed for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints.

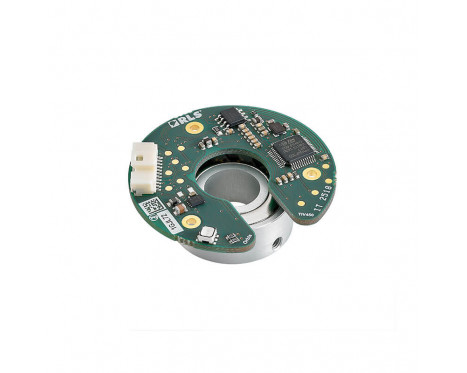

Orbis™ through-hole encoder system consists of a readhead and diametrically magnetised permanent magnet ring.
Output signals are provided in industry standard absolute, incremental, and analogue sinusoidal (sin/cos) signals.
For BISS-C, SPI, SSI, Asynchronous serial and PWM communication please refer to BRD01 Data sheet.
For Analogue sin/cos, commutation and incremental outputs please refer to BRD14 Data sheet.
優點
- Output formats: BiSS-C, SSI, SPI, Sin/Cos, ABZ, UVW, PWM and Asynchronous serial
- Through-hole design enables its mounting anywhere along the shaft
- Multi-turn counter option
- Status LED
- Optional self-calibration after assembly
- Wide installation tolerances
- Built-in self-diagnostics
- Zeroing function
- High speed operation
配置與購買
Configure
規格資料表
產品資料
系統
讀取類型
軸向
輸出
ABZ, BiSS-C, PWM, sin/cos, SPI, SSI, UART, UVW
最大解析度
14 位元
精度
自我校準後 ±0.25°
電氣
供應電壓
5 V ± 10 %
電流消耗
標準值 65 mA（無輸出負載）
機械
致動器材料
陽極處理鋁件
磁鐵材料
釹（含鎳銅鎳保護層）
Available ring sizes (inner diameter)
12 mm, 16 mm, 22 mm, 30 mm
環境
外部磁場
讀頭頂端最大 ±10 mT（DC 或 AC）
濕度
0 至 70% 未凝結
工作及存放條件
–40 °C to +120 °C (without connector)
