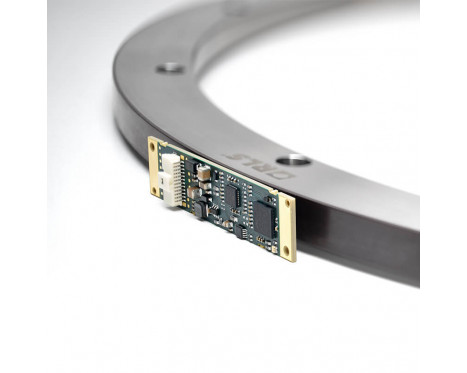

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing ensure low position latency, high resolution and angular velocity. The compact PCB-A design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.

優點

  • True absolute system
  • High accuracy and resolution
  • Suitable for highly dynamic control loops
  • SSI and BiSS C communication protocols + parallel ABZ channel
  • Rotational speeds up to 30,000 rpm
  • Compatible with solid rings
  • Wide installation tolerances
  • Compact design with horizontal or vertical connector
配置與購買 Configure 規格資料表

產品資料

系統

編碼器類型
Rotary absolute
讀取類型
徑向
輸出
BiSS-C, parallel ABZ incremental signals, SSI
最大解析度
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM

電氣

供應電壓
5 V to 30 V

環境

工作及存放條件
-20 °C to +85 °C
規格資料表提供詳細資訊

Speed calculator

Calculate maximum speed and determine product parameters based on your application.

下載
