概觀

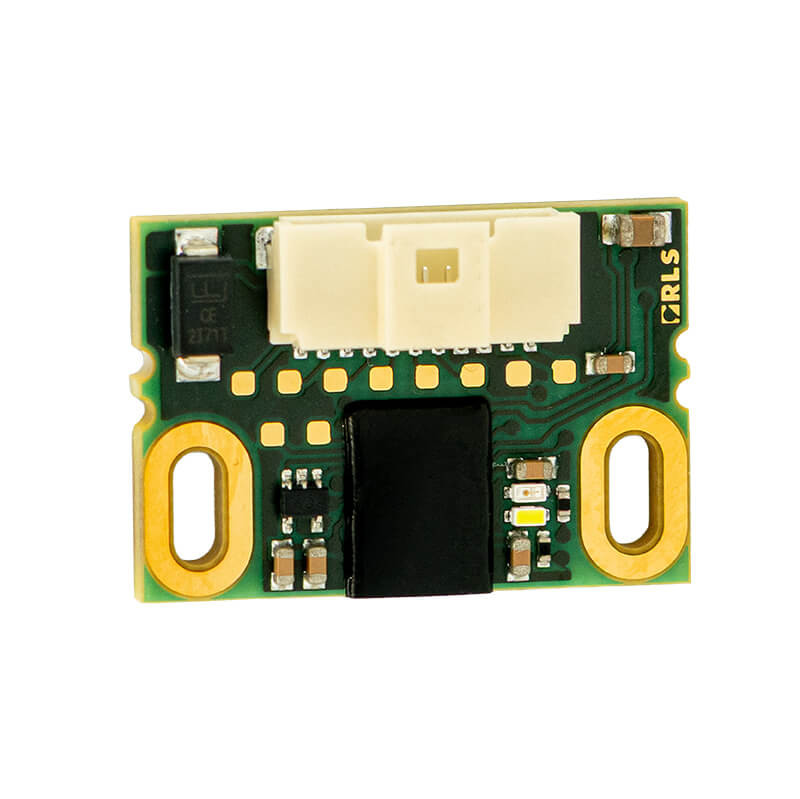

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.
Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
特徵
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)
優點
- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
產品資料
系統
編碼器類型
增量式
讀取類型
徑向, 線性, 軸向
輸出
增量式, 推拉
最大解析度
13 位元
精度
Up to ±10 µm
電氣
供應電壓
24 V ±10 % (on the readhead)
電流消耗
< 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
環境
工作及存放條件
–40 °C 至 +105 °C
