概觀

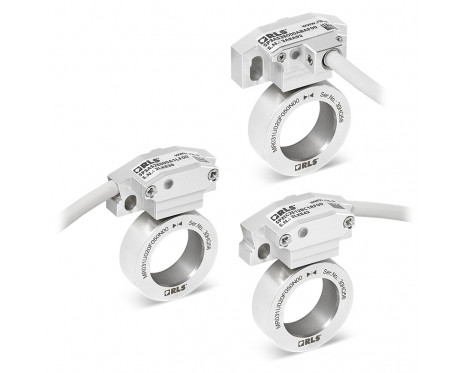

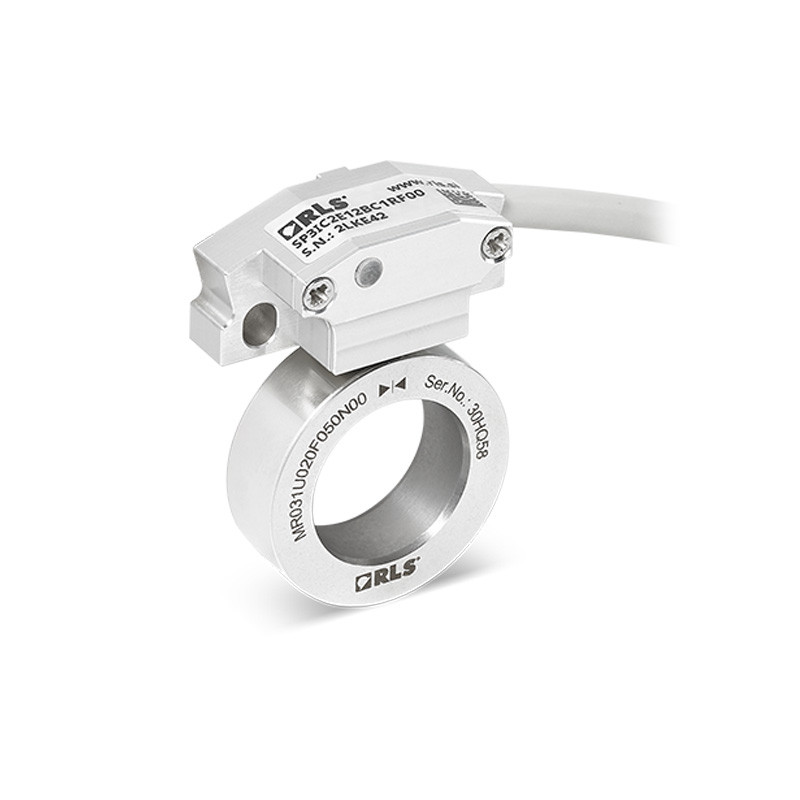

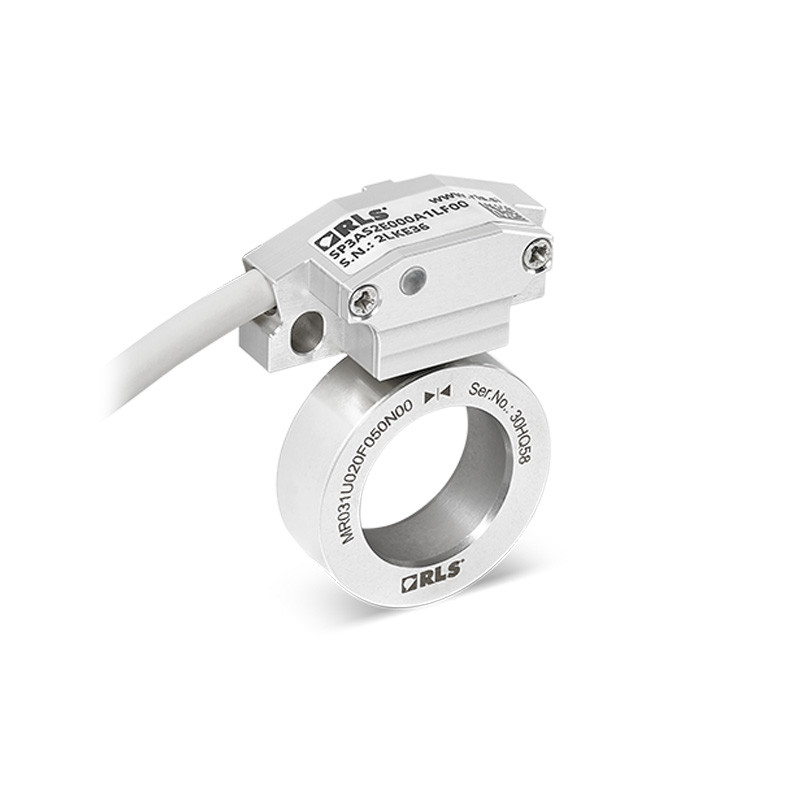

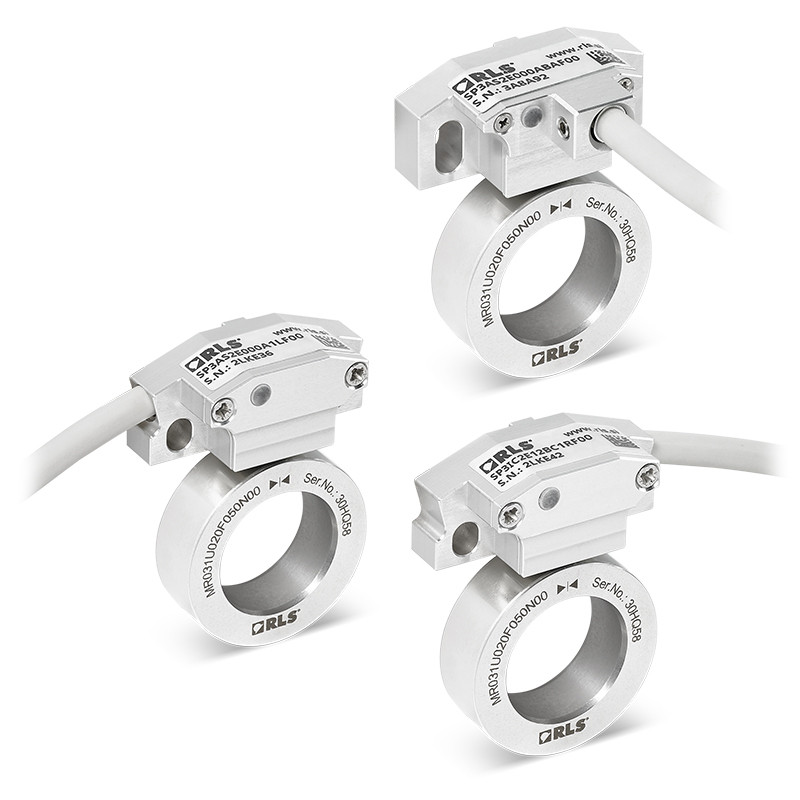

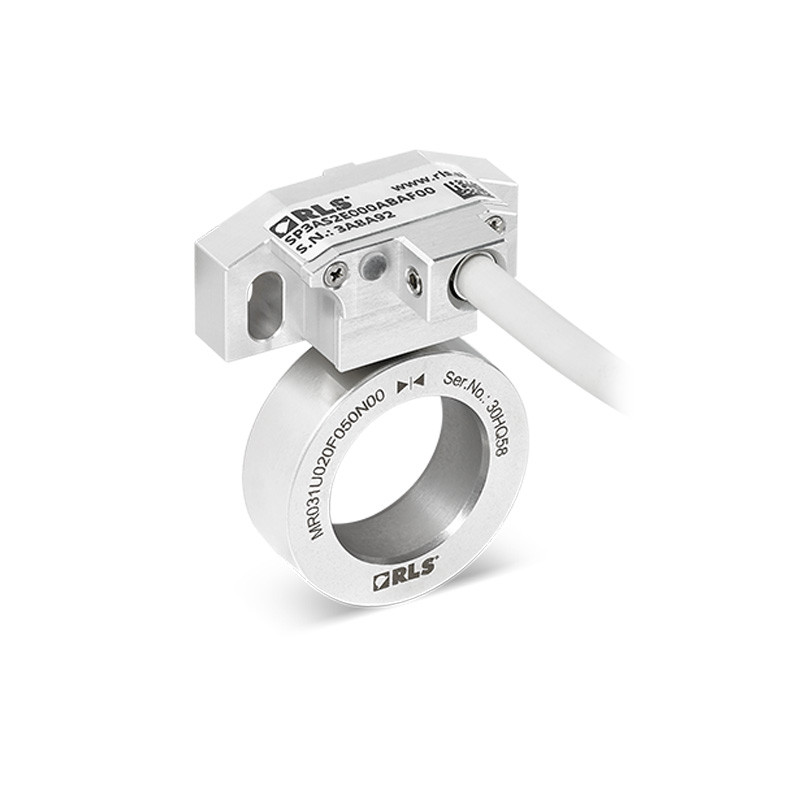

SpinCo™ is an incremental magnetic encoder system designed for use as primary position and speed feedback sensor for machine tool spindles.

It consists of two key elements, a readhead and a magnetic ring with welded cover foil.

特徵

  • Different ring sizes available
  • Speeds up to 55,000 rpm
  • From 50 to 556 sin/cos periods per revolution
  • ABZ digital incremental outputs with up to 4,096 steps
    per sin/cos period
  • Analogue output signals (1 Vpp)

優點

  • Robust design
  • High operating speed
  • Signal stability
  • IP67 protection
  • Wide installation tolerances
  • Small readhead size
  • High accuracy
配置與購買 Configure 規格資料表

產品資料

系統

編碼器類型
增量式
極長度
1 mm, 2 mm

電氣

供應電壓
5 V ±10 % (absolute maximum 6 V)
電流消耗
< 50 mA

機械

纜線
TPE AWG 26, shielded, Ø4.8 ±0.15 mm
質量
Readhead: 120 g (1 m cable, no connector)

環境

IP 防護等級
IP67
工作及存放條件
–40 °C 至 +85 °C
規格資料表提供詳細資訊
