概觀

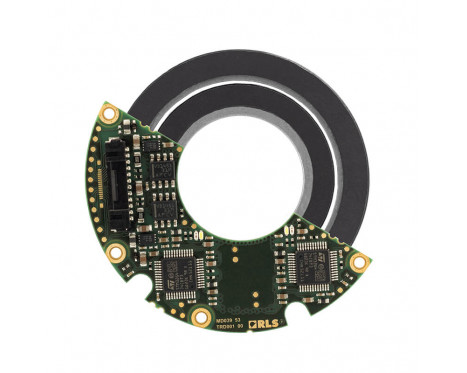

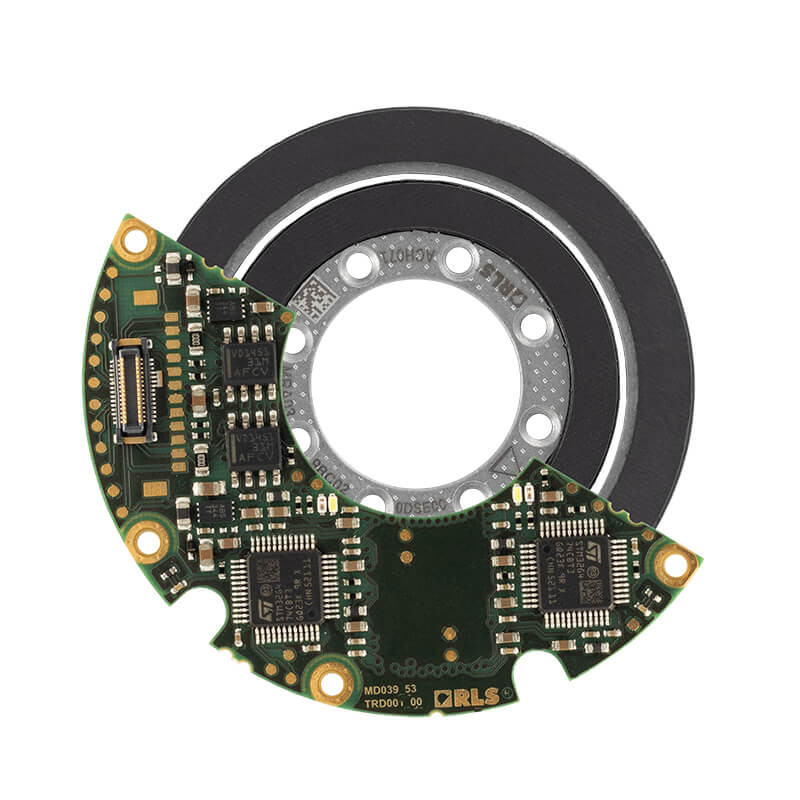

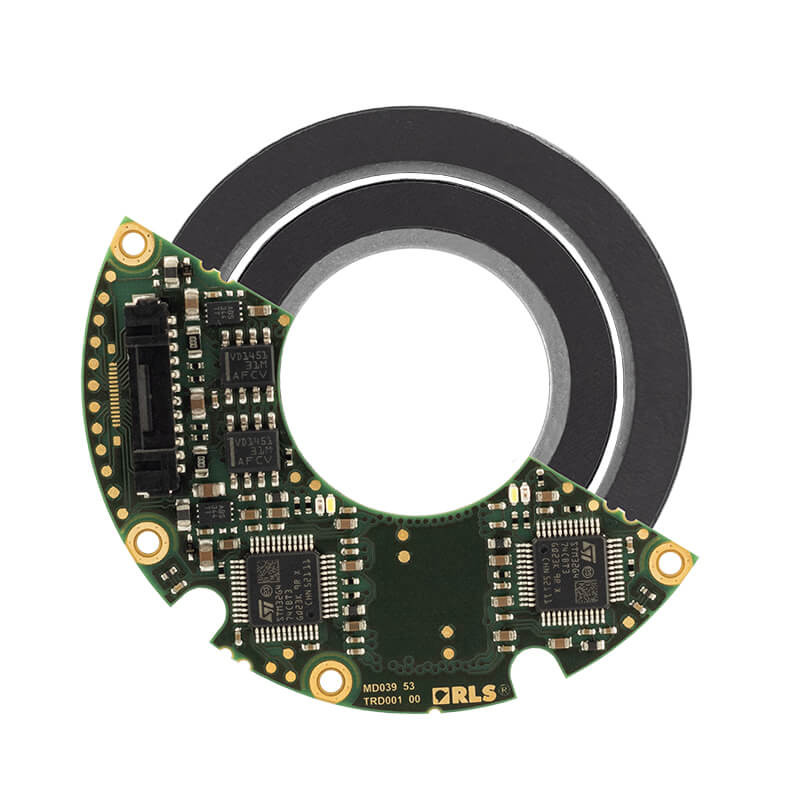

The AksIM-4 dual concentric high-performance encoder integrates two non-contact absolute rotary sensors in a single device. This innovative solution provides simultaneous motor and reducer position feedback in a robot joint for exceptionally smooth, synchronised, and accurate motion control. Its compact, space-saving design makes it perfect for advanced robotics and other applications where installation space is limited, without sacrificing accuracy, reliability, or performance.
特徵
- Two-in-one encoder solution
- Ultra-compact, low-profile design
- High accuracy and repeatability
- Multiturn counter option
- Immunity to external magnetic fields
優點
- Saves space
- Reduces complexity in robotic joints
- Immediate feedback at power-up
- Reliable performance even in demanding environments
Request a sample
產品資料
系統
讀取類型
軸向
解析度
Input encoder: 19 bit; Output encoder: 19 bit
電氣
供應電壓
4.5 V 到 5.5 V (連接器上)
環境
工作及存放條件
–40 °C 至 +105 °C
